High-power liquid cooled supercharge equipment2023/12/20 10:12:32

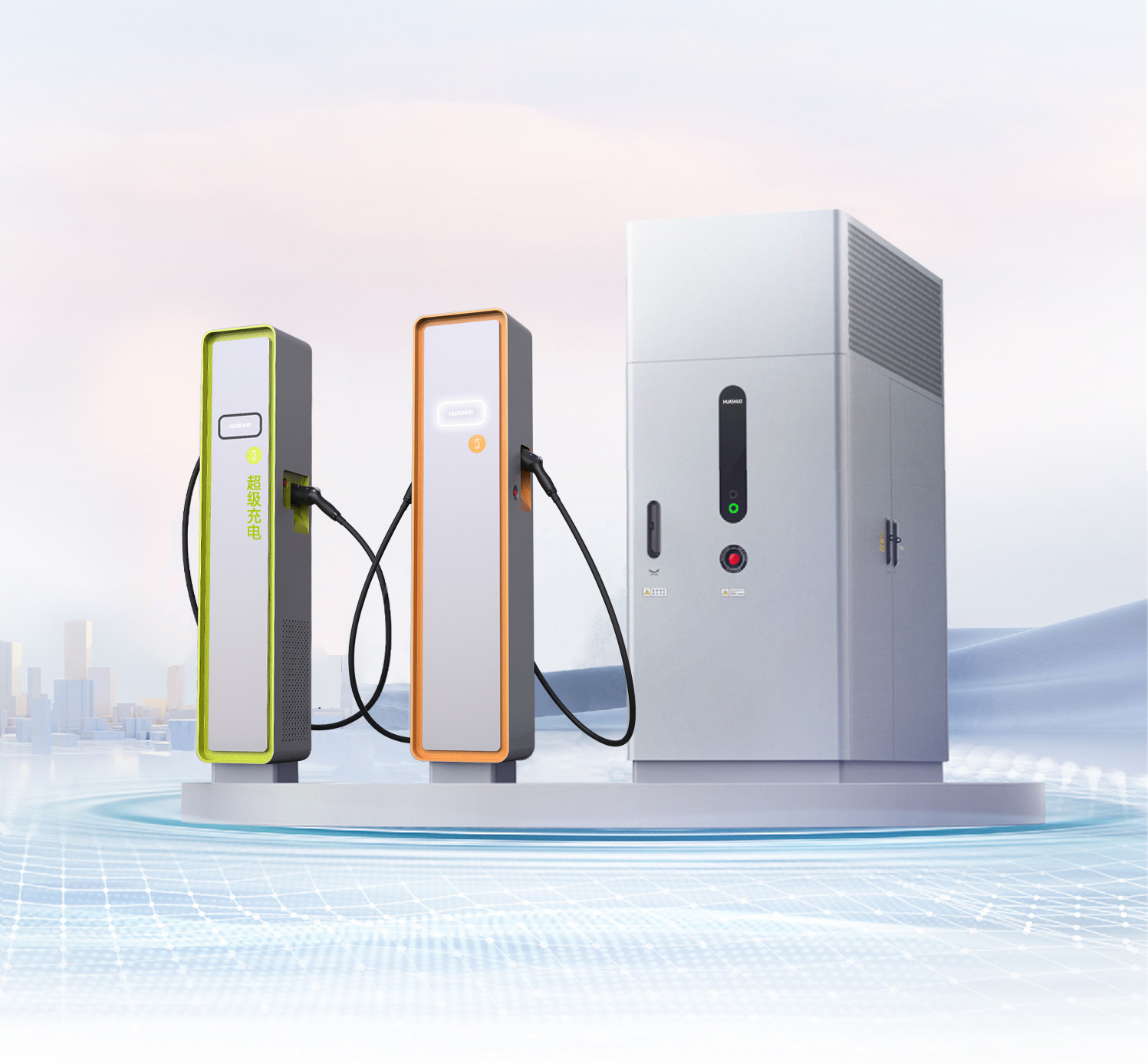

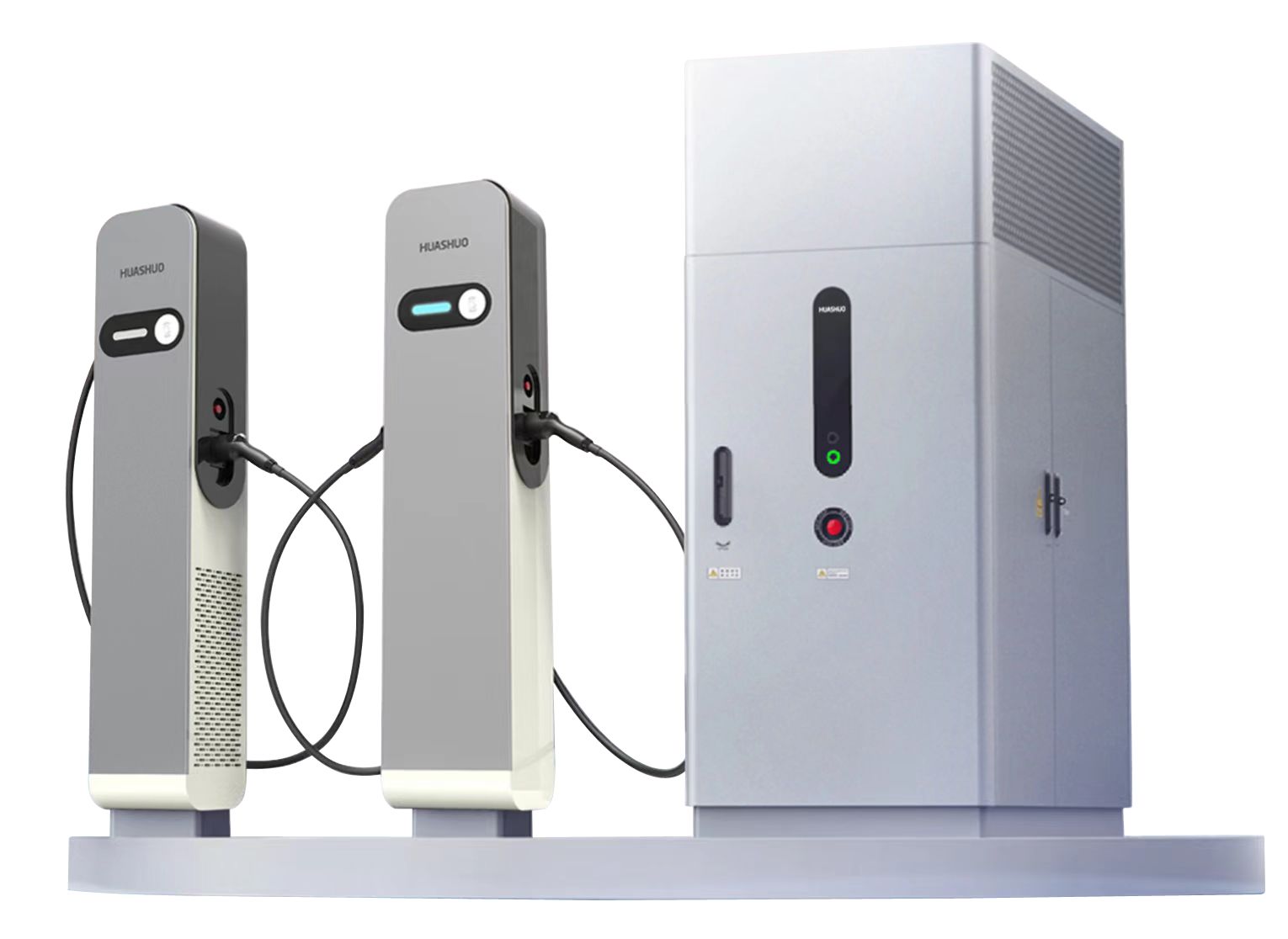

This product is a liquid-cooled supercharge equipment for new energy vehicle charging. Compared with traditional solutions, it innovates with new liquid-cooled technology and DC bus architecture, including two parts: host and terminal. The host is used to achieve energy conversion and power distribution, with efficient liquid cooling system , built-in 120kWAC/ DC and 60kWDC/DC liquid cooling module and power sharing unit, supporting 12-gun line output, supporting 2 overcharge terminals (CHAOJI interface) and 10 ordinary terminals (national standard 250A interface). The product can be used in urban fast charging stations, bus stations, highway service areas and other supercharging demonstration stations, serving the fast charging of electric cars, engineering vehicles, buses, logistics vehicles and other models, bringing great charging experience like refueling.
1. Function: The constant power range of the product is 300V -1000V; The product supports liquid-cooled charging terminals, reserved stacked light and stacked storage access, applicable to super charging models, to meet the fast charging needs of various models within 6 minutes.
2. Intelligence: The product uses plate and belt liquid transportation, with efficient installation and commissioning and smaller footprint; The product adopts full-link liquid cooling system, efficient liquid cooling cooling system and large-size low-speed EC wind, reduces noise by 25% and achieves 55dB (silent mode); The liquid cooling gun line is easy to operate and more portable; The full liquid cooling machine service life is up to 20 years.
3. Safety: The product has over/under voltage protection, output over voltage protection, constant power overload protection, short circuit protection, ground protection, over temperature protection, lightning protection, emergency stop protection, leakage protection, insulation detection, door- openning protection, battery reverse connection protection, relay adhesion protection, water-resisting protection, smoke alarm and other multiple protections. The product is compatible with both new and old national standards, and the success rate of a charge is ≥99.5%.
